Airflow - SubDag & TaskGroup

SubDag 생성

• task3, 4 을 SubDag로 묶은 후에 Parent Dag에서 실행

## parallel_dag.py
> vim /home/airflow/dags/parallel_dag.py

from airflow import DAG

from airflow.operators.bash import BashOperator

from airflow.operators.subdag import SubDagOperator

from subdags.subdag_parallel_dag import subdag_parallel_dag

from datetime import datetime

default_args = {

    'start_date': datetime(2022, 1, 1)

}

with DAG('parallel_dag',

        schedule_interval='@daily',

        default_args=default_args,

        catchup=False) as dag:



    task_1 = BashOperator(

        task_id='task_1',

        bash_command="sleep 3"

    )

    processing = SubDagOperator(

        task_id='processing_tasks',

        subdag=subdag_parallel_dag('parallel_dag', 'processing_tasks', default_args)

    )

    task_4 = BashOperator(

        task_id='task_4',

        bash_command="sleep 3"

    )

    task_1 >> processing >> task_4

## subdag_parallel_dag.py
> mkdir /home/airflow/dags/subdags
> vim /home/airflow/dags/subdags/subdag_parallel_dag.py

from airflow import DAG
from airflow.operators.bash import BashOperator

def subdag_parallel_dag(parent_dag_id, child_dag_id, default_args):

    with DAG(dag_id=f'{parent_dag_id}.{child_dag_id}',

            default_args=default_args

    ) as dag:

        task_2 = BashOperator(

            task_id='task_2',

            bash_command="sleep 3"

        )

        task_3 = BashOperator(

            task_id='task_3',

            bash_command="sleep 3"

        )

        return dag

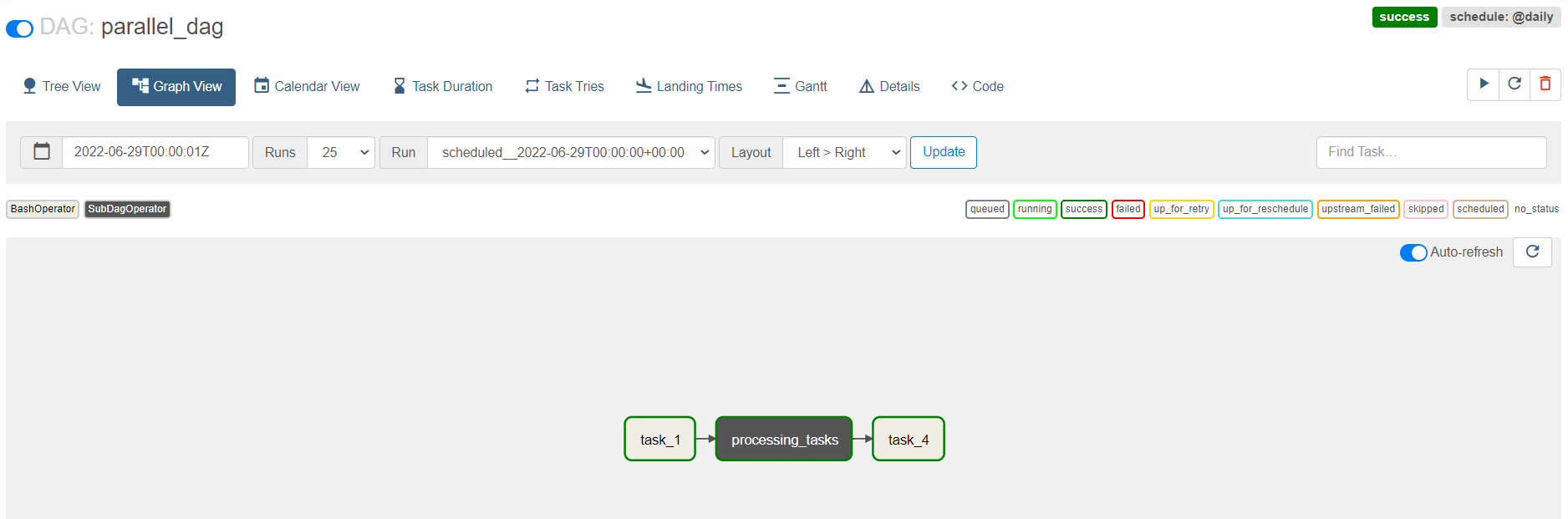

SubDag 실행



SubDag 단점

• Executor가 Parallel 작업을 지원하더라고 Sequential 하게만 동작함
• 중간에 Deadlock에 빠질 수가 있음
• SubDag 라이브러리를 만들어 분기 후 Import 하여 사용하므로 코드의 복잡성 증가





"그래서 SubDag의 대안으로 주로 TaskGroup을 이용함"







TaskGroup 생성

## parallel_dag.py
> vim /home/airflow/dags/parallel_dag.py

from airflow import DAG
from airflow.operators.bash import BashOperator

from airflow.operators.subdag import SubDagOperator
## TaskGroup Library Import

from airflow.utils.task_group import TaskGroup

from subdags.subdag_parallel_dag import subdag_parallel_dag

from datetime import datetime

default_args = {

    'start_date': datetime(2022, 1, 1)

}

with DAG('parallel_dag',

        schedule_interval='@daily',

        default_args=default_args,

        catchup=False) as dag:



    task_1 = BashOperator(

        task_id='task_1',

        bash_command="sleep 3"

    )

## Subgroup -> TaskGroup Change

    with TaskGroup('processing_tasks') as processing_tasks:

        task_2 = BashOperator(

            task_id='task_2',

            bash_command="sleep 3"

        )

        task_3 = BashOperator(

            task_id='task_3',

            bash_command="sleep 3"

        )

    task_4 = BashOperator(

        task_id='task_4',

        bash_command="sleep 3"

    )

## Task Execute Change

    task_1 >> processing_tasks >> task_4

## TaskGroup 2차 분기
from airflow import DAG
from airflow.operators.bash import BashOperator

from airflow.operators.subdag import SubDagOperator

from airflow.utils.task_group import TaskGroup

from subdags.subdag_parallel_dag import subdag_parallel_dag

from datetime import datetime

default_args = {

    'start_date': datetime(2022, 1, 1)

}

with DAG('parallel_dag',

        schedule_interval='@daily',

        default_args=default_args,

        catchup=False) as dag:



    task_1 = BashOperator(

        task_id='task_1',

        bash_command="sleep 3"

    )

    with TaskGroup('processing_tasks') as processing_tasks:

        task_2 = BashOperator(

            task_id='task_2',

            bash_command="sleep 3"

        )

        with TaskGroup('spark_tasks') as spark_tasks:

            task_3 = BashOperator(

                task_id='task_3',

                bash_command="sleep 3"

            )



        with TaskGroup('flink_tasks') as flink_tasks:

            task_3 = BashOperator(

                task_id='task_3',

                bash_command="sleep 3"

            )

    task_4 = BashOperator(

        task_id='task_4',

        bash_command="sleep 3"

    )

    task_1 >> processing_tasks >> task_4



TaskGroup 동작

• TaskGroup을 마우스 버튼 클릭하시면 내부 Task 정보 확인이 가능합니다.
• TaskGroup으로 작성된 Task 들은 Parallel 실행 가능합니다.

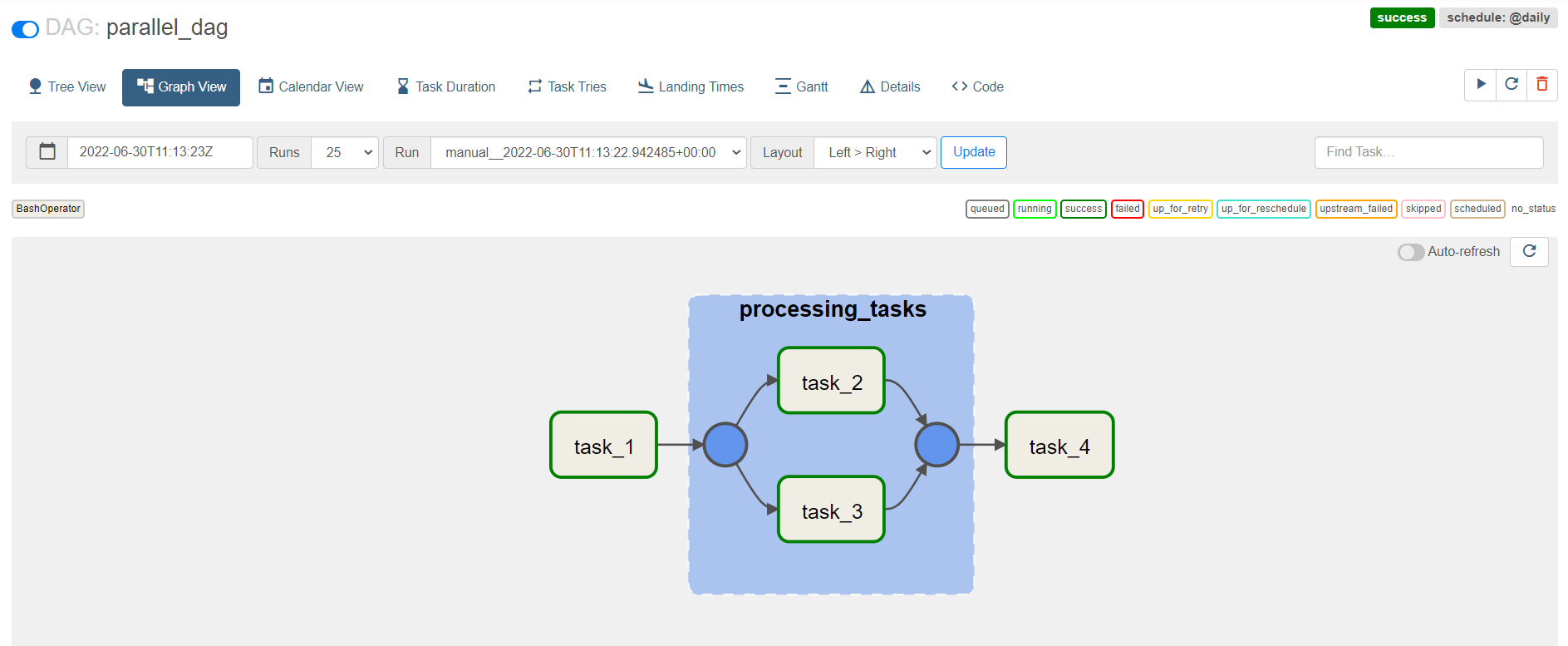

<TaskGroup 1차 분기>

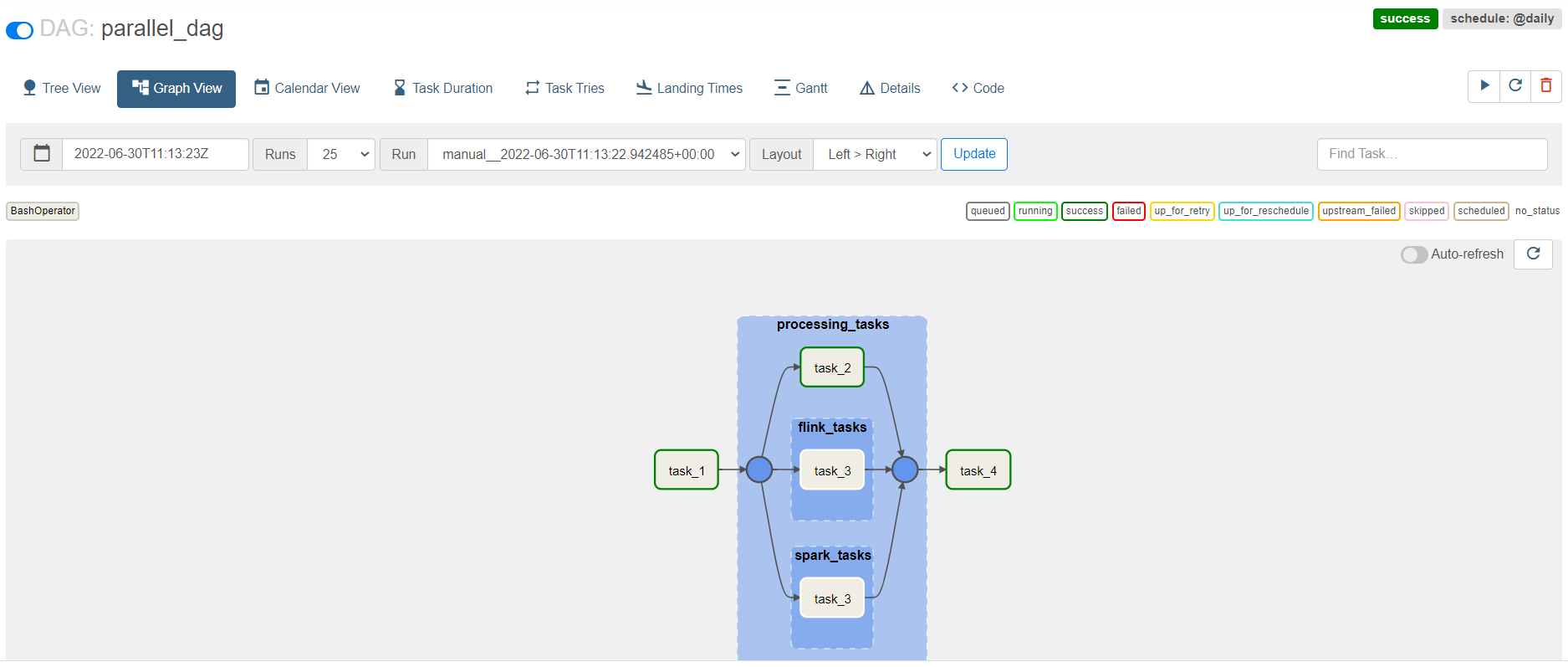

<TaskGroup 2차 분기>
